Unitree G1 Humanoid Robots

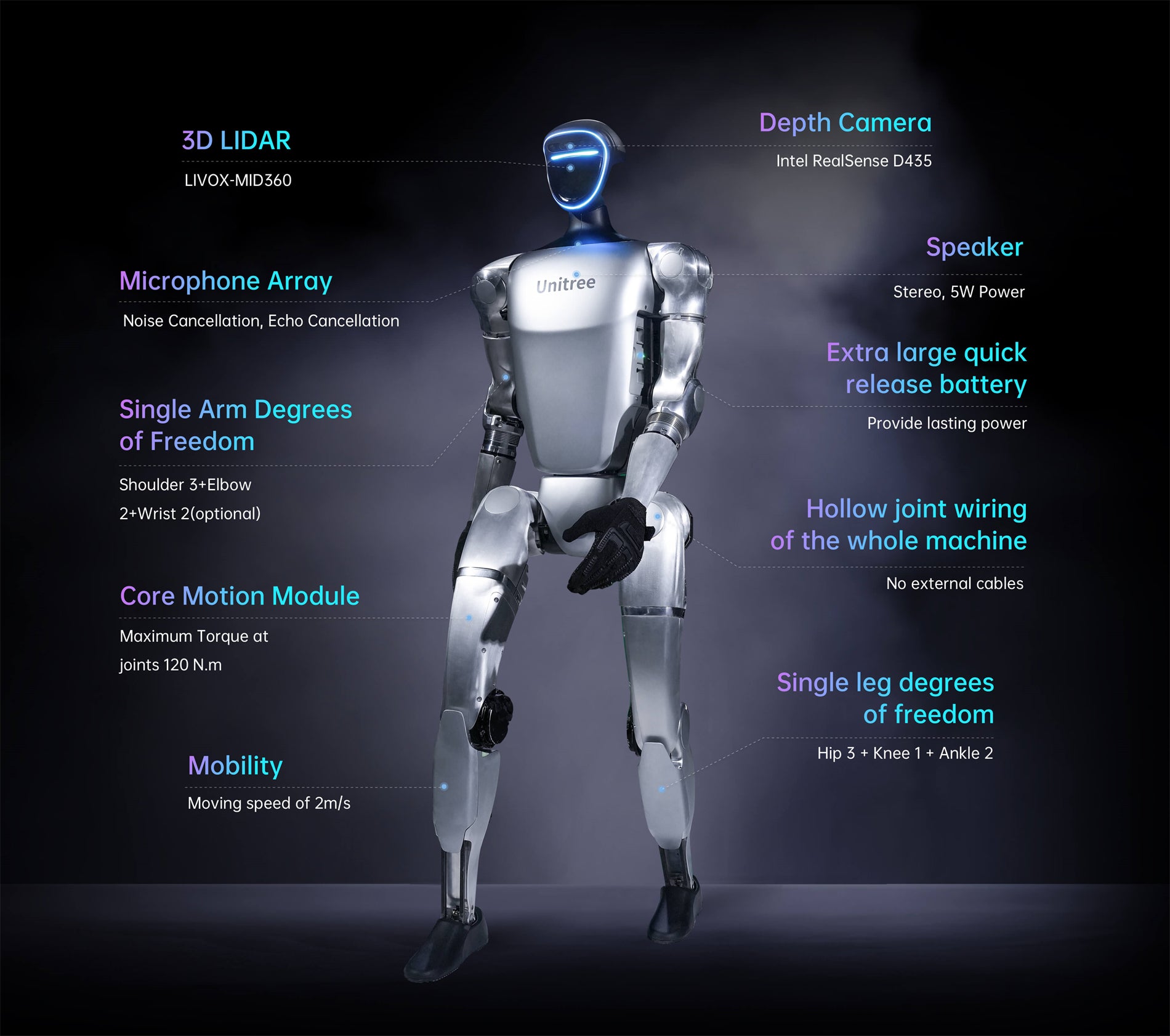

Introducing the G1, a versatile humanoid robot engineered to excel in light industrial tasks, service applications, and educational settings. With its advanced 3D LiDAR and depth camera technologies, the G1 Standard ensures precise navigation and task execution across various environments. Its robust design and user-friendly functionality make it an ideal choice for research, workflow optimization, and the exploration of humanoid robotics.

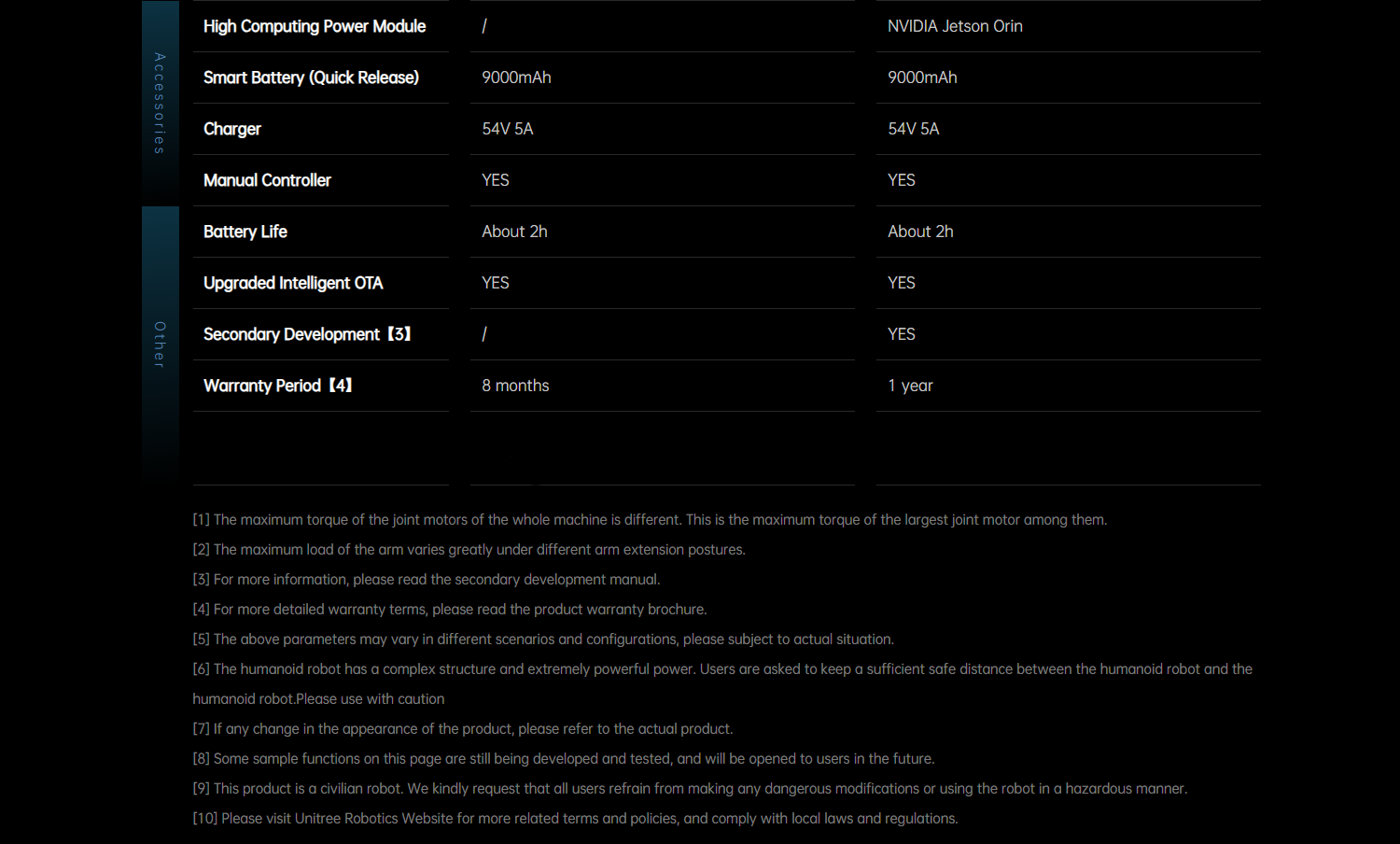

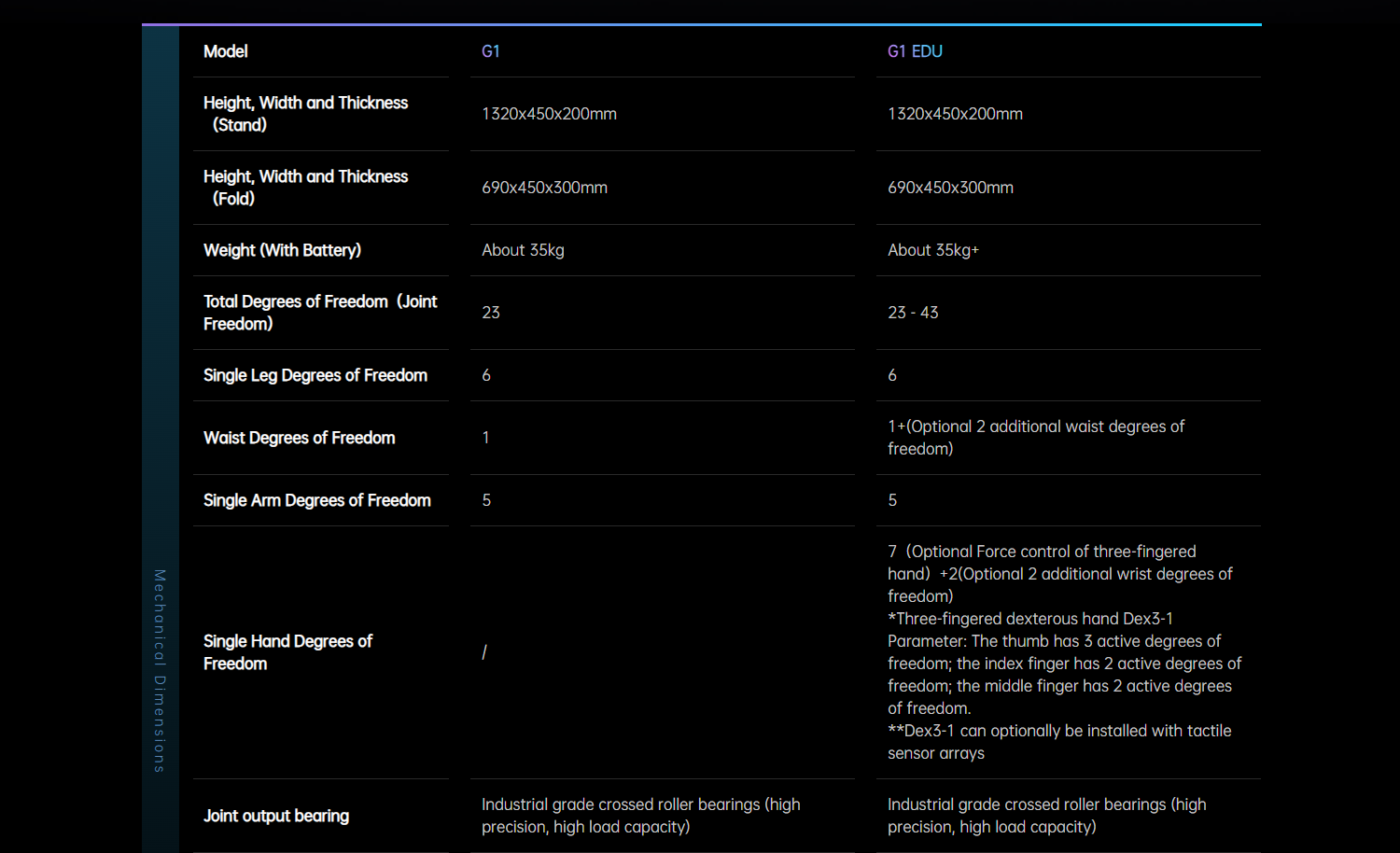

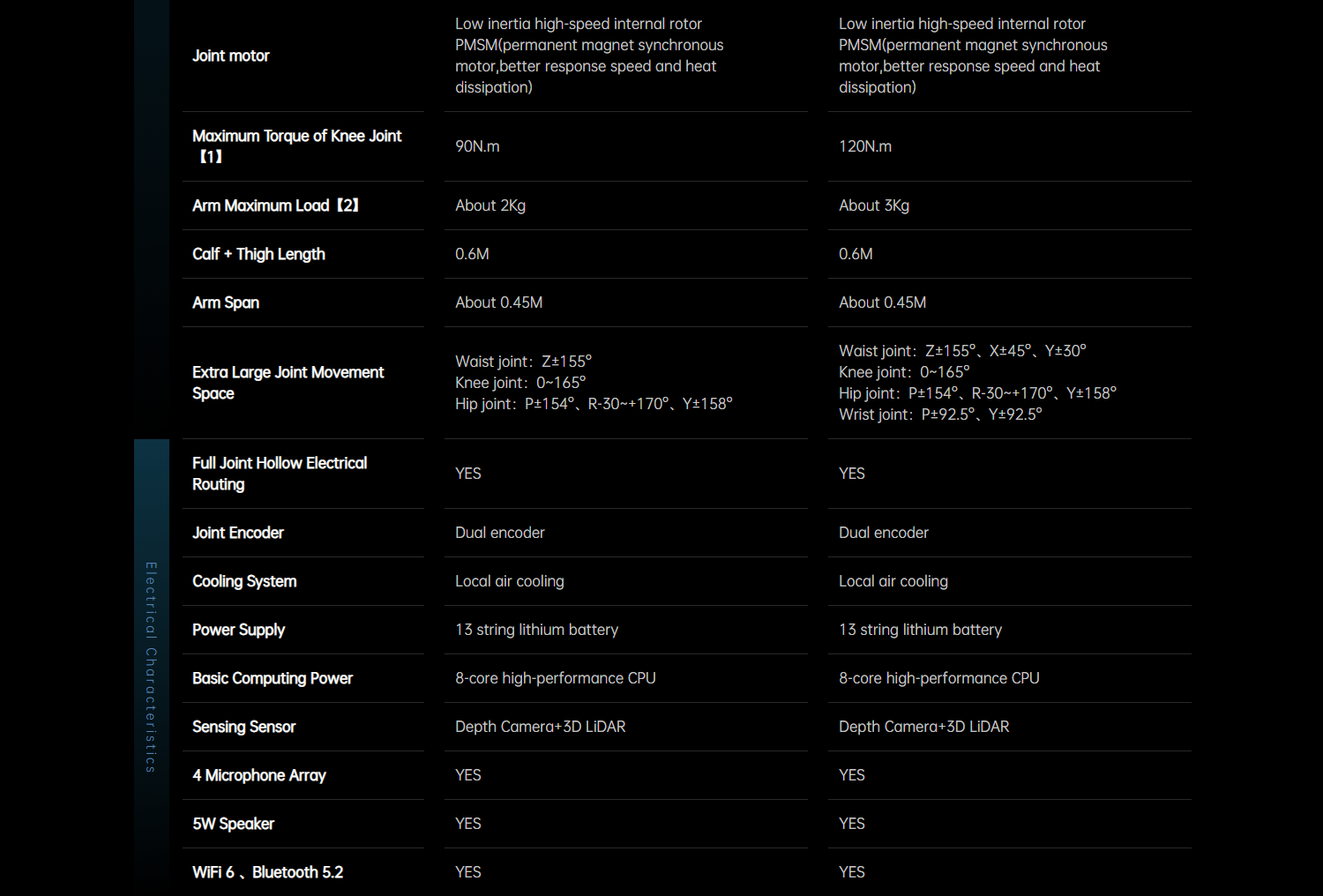

Technical Specifications

Dimensions:

• Standing: 1320 mm x 450 mm x 200 mm
• Folded: 690 mm x 450 mm x 300 mm

Weight :

• Approximately 35 kg (including battery)

Degrees of Freedom :

• Total: 23
• Single Leg: 6
• Waist: 1
• Single Arm: 5

Maximum Joint Torque :

• Knee Joint: 90 N·m
• Arm Load Capacity: Up to 2 kg

Power Supply :

• 13-series lithium battery with 9000 mAh capacity

Sensors :

• Depth Camera
• 3D LiDAR
• Microphone Array with noise and echo cancellation
• 5W Stereo Speaker

Connectivity :

• Wi-Fi 6
• Bluetooth 5.2

Battery Life :

• Approximately 2 hours
• Operating Speed: Up to 2 m/s

Warranty :

The G1 Model features a 6 Month Warranty from date of purchase.

The G1 is a versatile and reliable humanoid robot, perfectly suited for a wide range of applications, from research and education to light industrial tasks. Its advanced features and robust design make it an invaluable asset for those looking to explore the future of robotics.
